Mars Series

Motion Capture Cameras

High Accuracy and Affordable Motion Capture Camera

View Specs

Core Features

High Frequency, and Low Latency

NOKOV Mars Series cameras capture motion with 380 FPS, 2.4ms latency, and sub-millimeter accuracy, featuring real-time multi-agent tracking and sunlight-resistant models for outdoor use.

Mars26H offers up to 26 megapixels resolution
Mars2H achieves 380 FPS at full resolution
Adjustable frequency exceeds 10,000 FPS
Sub-millimeter 3D accuracy
Sunlight-resistant for outdoor use

Related Links:
Main Factors Affecting Motion Capture Accuracy: Resolution and Frequency

Maximized Capture Area with
Multi-Agent Support

Capture detailed, real-time movements of numerous objectives with NOKOV's Mars series cameras, covering expansive areas for precise, scalable motion capture projects.

Real-time multi-agent motion tracking
Support large volume mocap space

Rigorous Testing, Unrivaled Stability

Every NOKOV camera undergoes a mandatory 72-hour factory stress test to ensure peak performance. Engineered for endurance, our systems are proven to operate continuously for weeks, providing the ultimate reliability for your most demanding, long-term projects.

More Value, More Cameras,
Better Stability - All within Your Budget

NOKOV motion capture cameras offer an excellent balance of cost-effectiveness and enhanced stability in the motion capture industry. With an increased range of camera options, our technology provides reliable performance and value.

Specifications

Model

P/N

PixelsMP

Resolution

Frame RateFPS

Latencyms

3D
Accuracymm

Capture
Distancem

FOV

Outdoor

Full Spec

Mars1.3H-INTL
Mars1.3HW-INTL

1.3
1.3

1280x1024
1280x1024

240
240

4.0
4.0

±0.2
±0.3

11
6

56°x46°
95°x74°

N/A
N/A

Mars 2H
Mars 2HW

2.2
2.2

2048x1088
2048x1088

380
380

2.4
2.4

±0.15
±0.25

21
15

70°x40°
104°x55°

Optional
N/A

Mars 4H
Mars 4HW

4
4

2048x2048
2048x2048

180
180

5.2
5.2

±0.1
±0.25

32
20

52°x52°
90°x90°

Optional
N/A

Mars 9H
Mars 9HW

9
9

4250x2160
4250x2160

300
300

3.0
3.0

±0.05
±0.2

28
16

68°x37°
98°x50°

Optional
N/A

Mars 14H

4608x3072

670

2.0

±0.05

68°x45°

N/A

Mars 18H
Mars 18HW

18
18

4508x4096
4508x4096

139
139

5.0
5.0

±0.04
±0.15

28
20

52°x47°
90°x82°

Optional
N/A

Mars 26H
Mars 26HW

26
26

5120x5120
5120x5120

150
150

4.0
4.0

±0.03
±0.1

30
20

56°x56°
105°x105°

Optional
N/A

* For detailed specifications or customized camera options, please contact us.

Protective Accessory

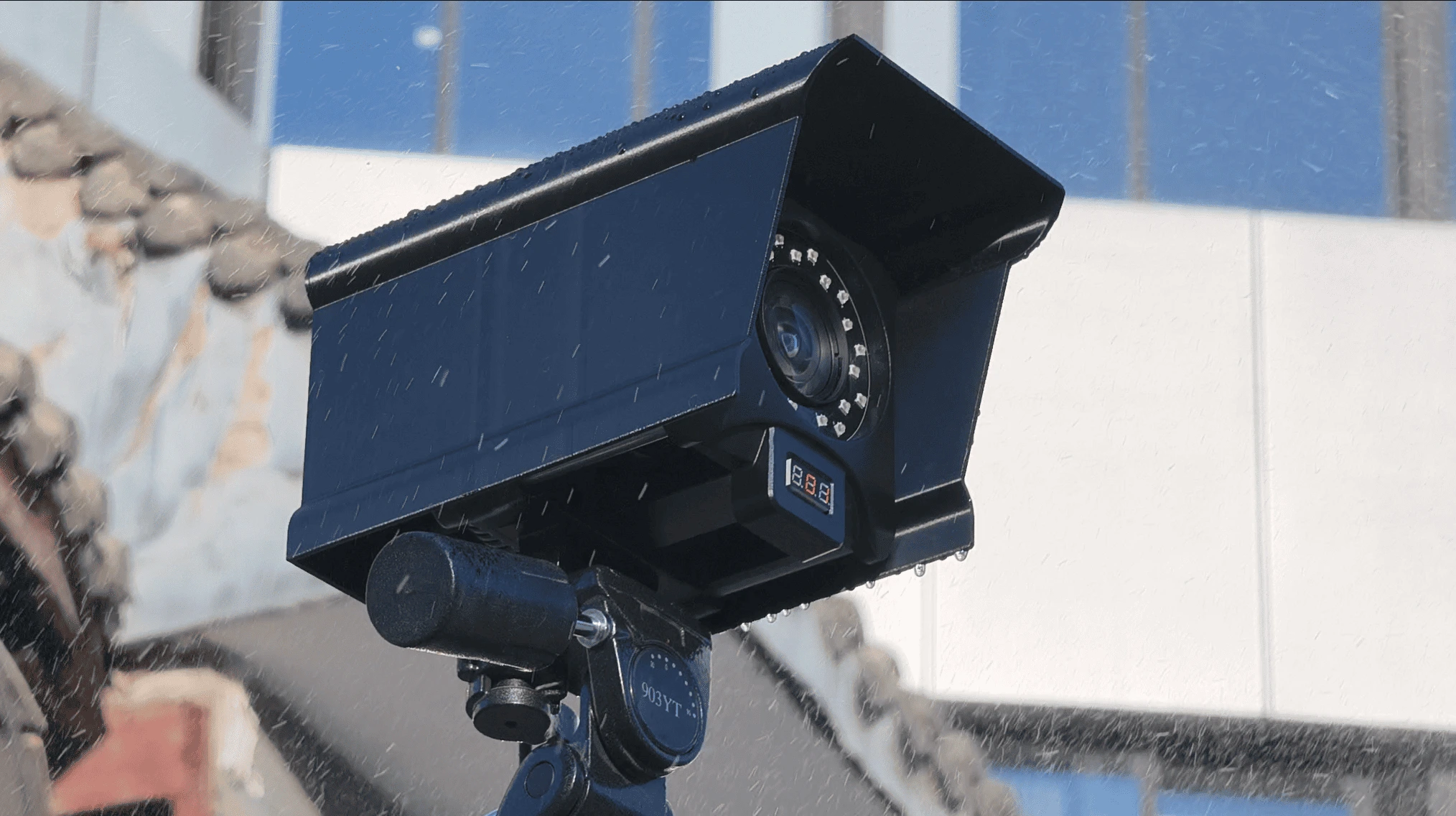

Camera Waterproof Cover

Compatible with multiple cameras, the waterproof and dust-proof cover extends motion capture into outdoor and demanding environments, ensuring reliable, high-precision data collection.

	Model: H67-N1	Model: H68-N1
	Fits: Mars4H, Mars18H, Mars26H	Fits: Mars2H, Mars9H
	Dimensions: 136mm246mm130mm	Dimensions: 136mm211mm130mm
	Weight: 197.1g	Weight: 166.5g

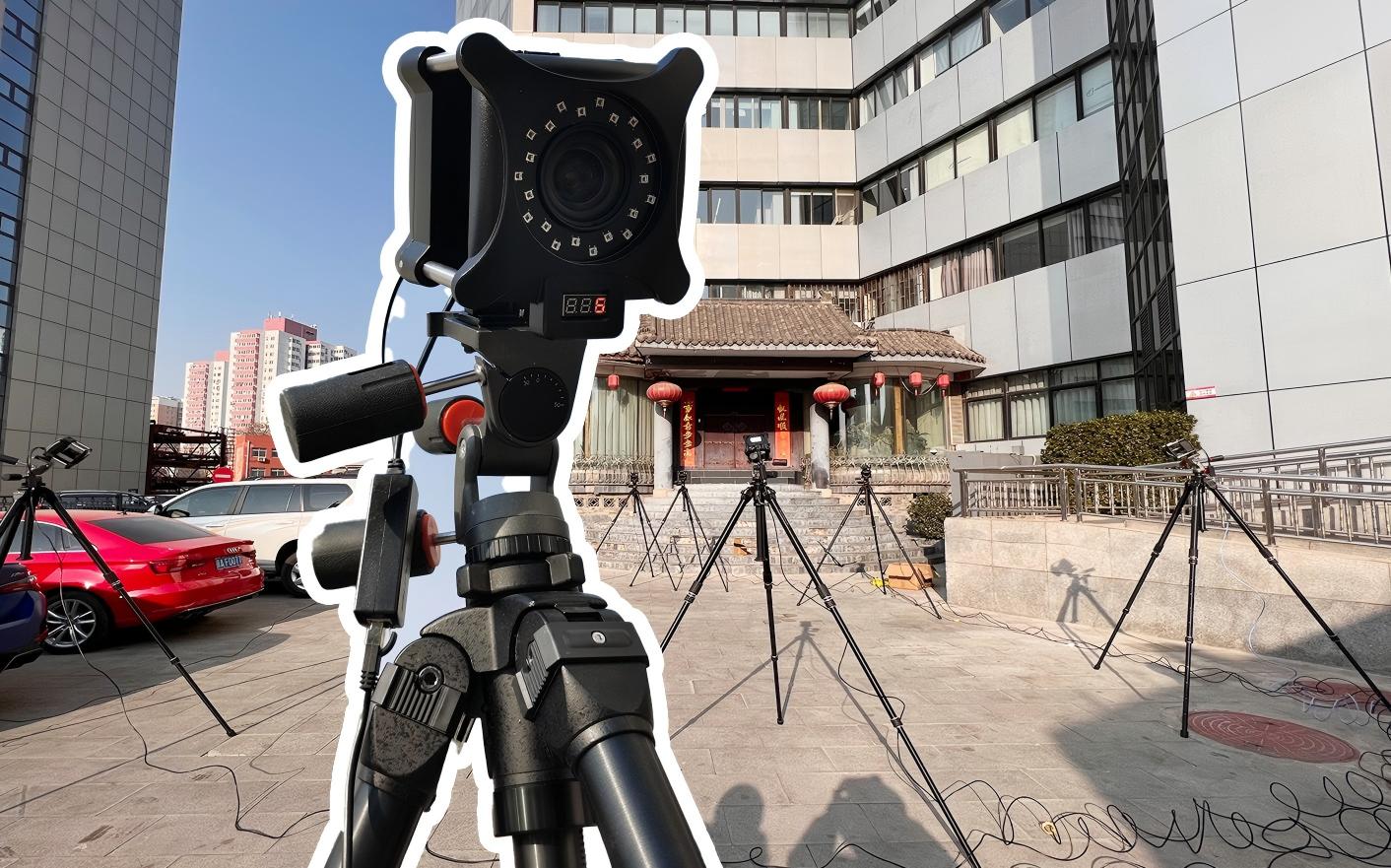

NOKOV AntiSun Mocap Camera

Outdoor Motion Capture in SunLight

In bright sunlight, object surfaces reflect a large amount of light, making it difficult for traditional optical motion capture systems to effectively recognize markers. NOKOV’s AntiSun Mocap Camera (AS-type camera) is designed specifically for outdoor motion capture. Strong sunlight suppression, accurate marker recognition.
AntiSun cameras remove most solar light interference, stably recognizing markers in bright environments for real-time UAV trajectory and human movement capture.

Extensive Integration and SDK Support

Our product provides robust plugin capabilities for UE, Unity, Maya, iClone, Motion Builder, and other platforms. It also offers extensive SDK support for various technologies, including Linux, Python, MatLab, Simulink, C#, C++, and more.
