A professional device integrating dual-mode motion capture and synchronized video

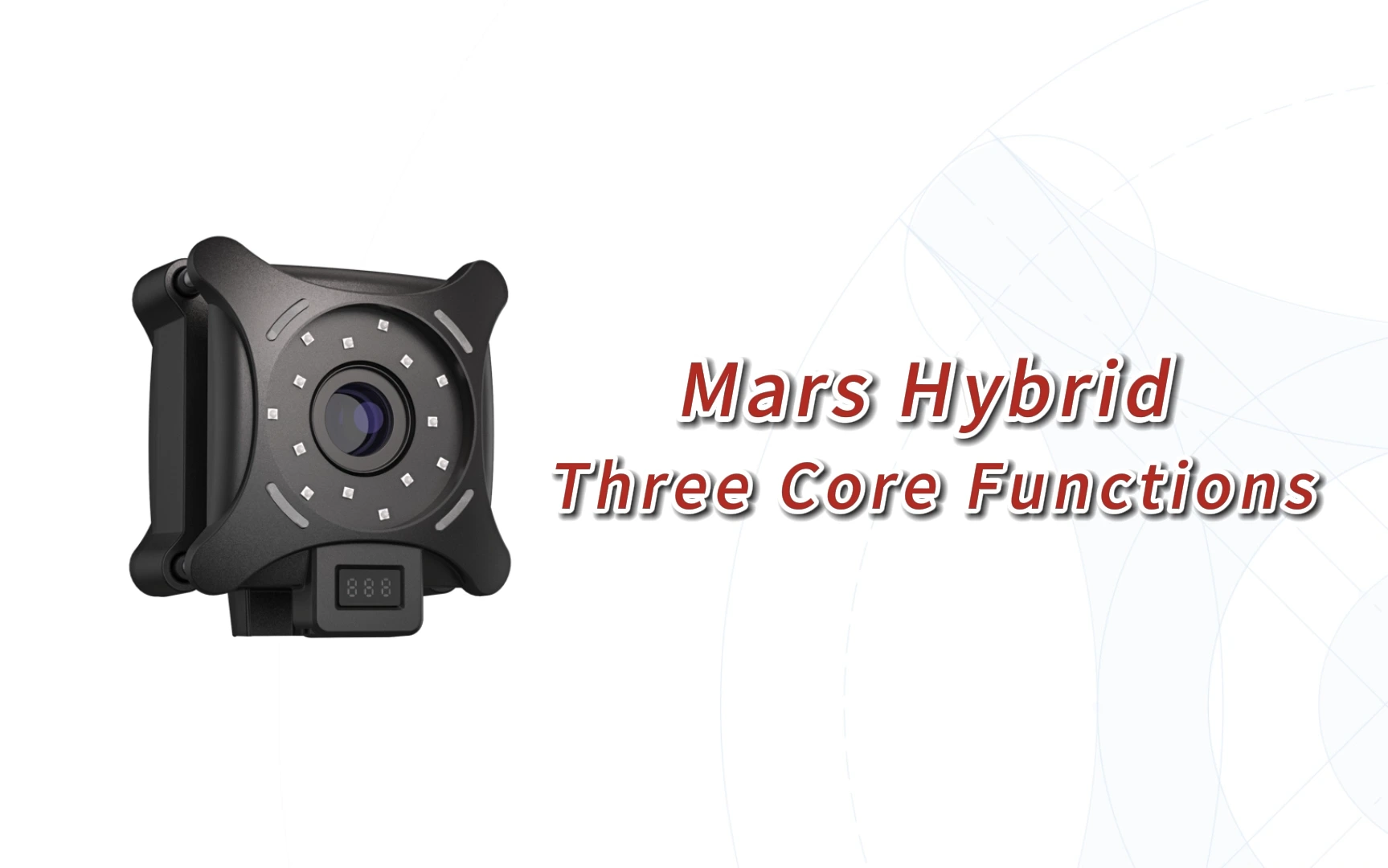

Mars Hybrid Series Motion Capture Cameras are professional devices that integrate three core functions: marker-based motion capture, markerless motion capture, and synchronized video recording. It enables flexible, one-click switching without the need for hardware changes, providing high-precision and efficient motion capture for applications in robotics, life sciences, virtual reality, and film/animation production. This series is designed for a wide range of applications, from algorithm validation in the lab to complex on-site deployment.
Core Features

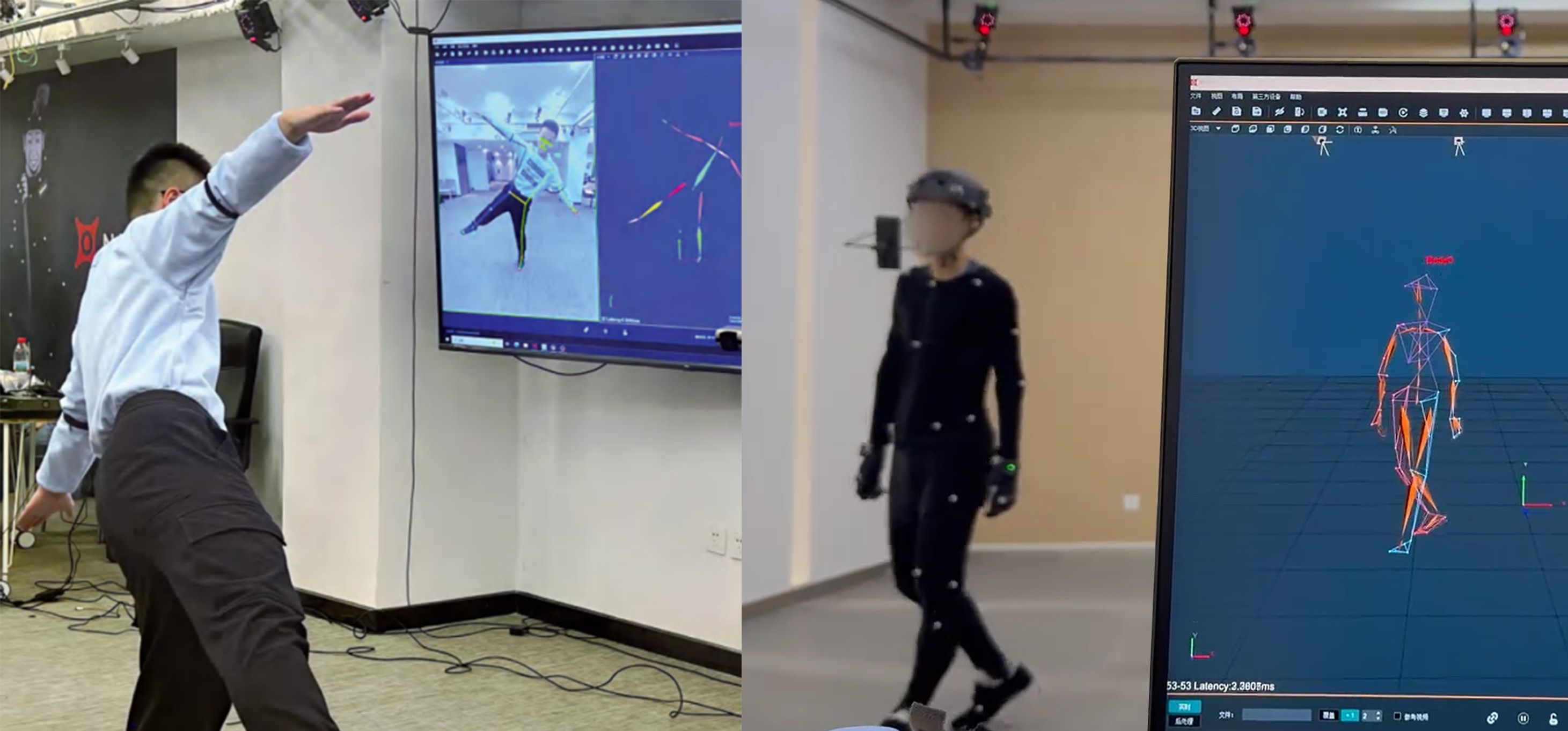

Dual-Mode Motion Capture: Flexible Switching on Demand
If the entire motion capture system is built with the Hybrid series cameras, it can be easily switched between a marker-based and a markerless system to meet different needs. One hardware setup covers all scenarios, addressing both the need for precise data collection and the convenience of quick, markerless capture.

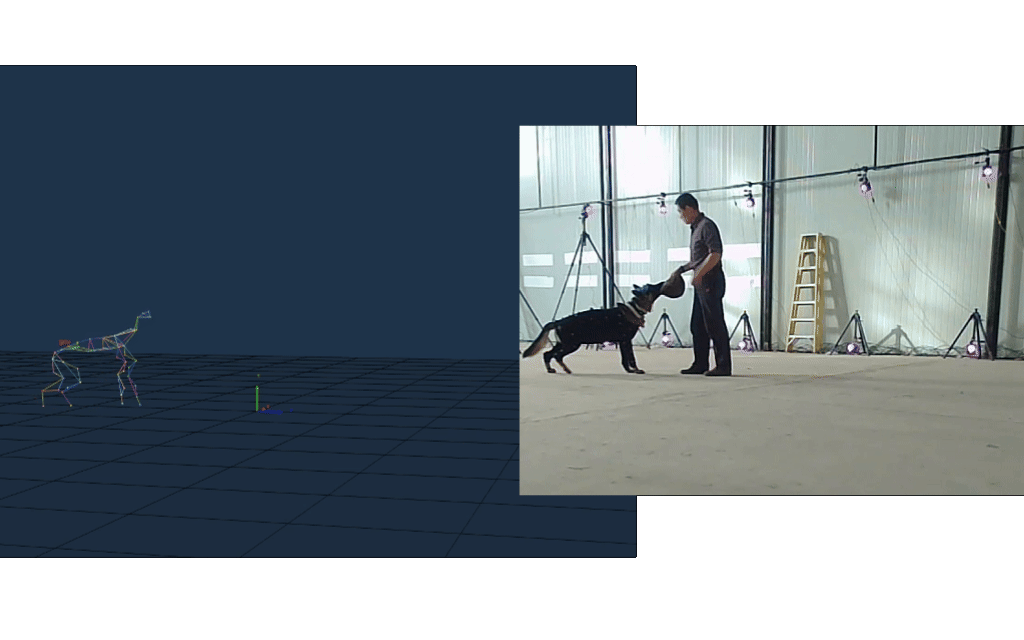

Synchronized Video Recording: Flexible Multi-Angle Capture
Equipped with high-speed synchronized video recording, the video frames are precisely time-aligned with the motion capture data. In multi-camera motion capture systems, any camera can be assigned to handle the Synchronized video function, with adjustable shooting angles and quantities to suit the needs, enabling complete freedom in synchronized data capture.
Specifications
Model
Mode
PixelsMP
Resolution
Frame RateFPS
Latencyms
3D Accuracymm
Capture Distancem
FOV
Full Spec
Marker-based mocap mode
2.2
2048×1088
350
2.4
±0.15
21m
70°×40°
Markerless mocap mode/Synchronized video recording mode
2.2
2048x1088
150FPS@2.2M 220FPS@1.4M 620FPS@0.3M
/
/
/
/
* For detailed specifications or customized camera options, please contact us.
Hassle-free After-sales Services
NOKOV offers expert support and tailored solutions for all stages of your motion capture journey, ensuring client satisfaction and optimal results.
